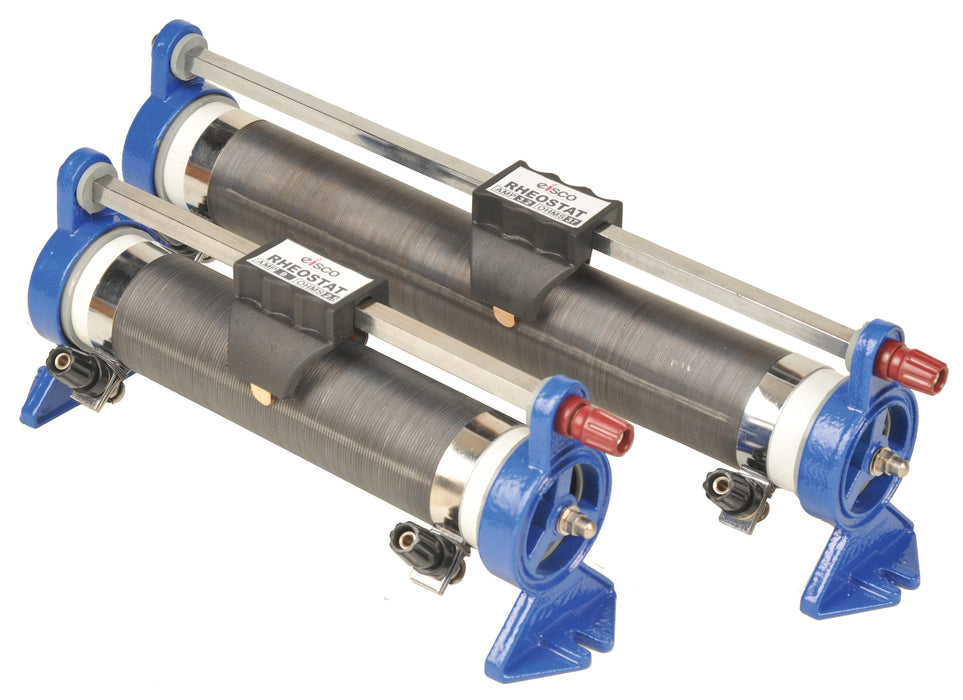

Rheostat - Standard, Resistance 16 Ohms, Max. Current 4 A
Rheostat - Standard, Resistance 16 Ohms, Max. Current 4 A

Eisco Labs Rheostat - Standard, Resistance 16 Ohms, Max. Current 4 A

SKU PH1150F
  • Rheostat - Standard, Resistance 16 Ohms, Max. Current 4 A
  • Rheostat is wound with heavily oxidized constantan (Copper-Nickel Alloy) wire on a vitreous enameled steel tube.
  • There is a heavy duty sliding contact made of phosphor bronze and nickel plated for corrosion resistance.
  • There are 2;4 mm terminal posts which are fitted to facilitate external connection conventional 4 mm plug

This Rheostat is wound with heavily oxidized constantan (Copper-Nickel Alloy) wire on a vitreous enameled steel tube. The tube is supported on die cast ends. There is a heavy duty sliding contact made of phosphor bronze and nickel plated for corrosion resistance. There are 2;4 mm terminal posts which are fitted to facilitate external connection conventional 4 mm plug

InstructionsNo instructions available online. Please contact us for further assistance.
High Resolution ImagePlease register as a teacher or distributor to view and download high resolution images.
