Eisco - Power Transmission Line Apparatus - Electricity Grid Simulation - Demonstrates Voltage Transformation & Power Loss Over Distance

• REALISTIC SIMULATION || Clearly demonstrates why electrical power is stepped up to thousands of volts for long-distance transmission and stepped down at the consumer end.

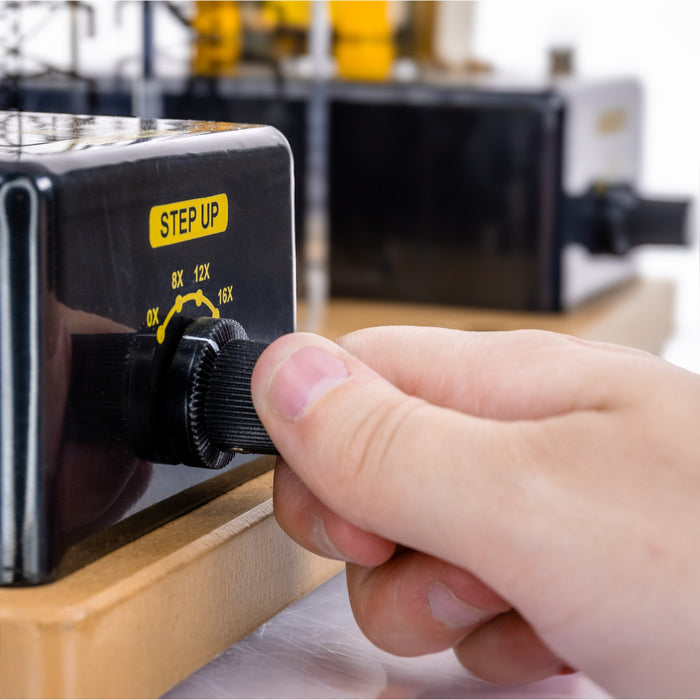

• STEP UP & STEP DOWN TRANSFORMERS || Includes built-in transformers that easily switch in and out of circuit, effectively showing power loss differences with and without voltage transformation.

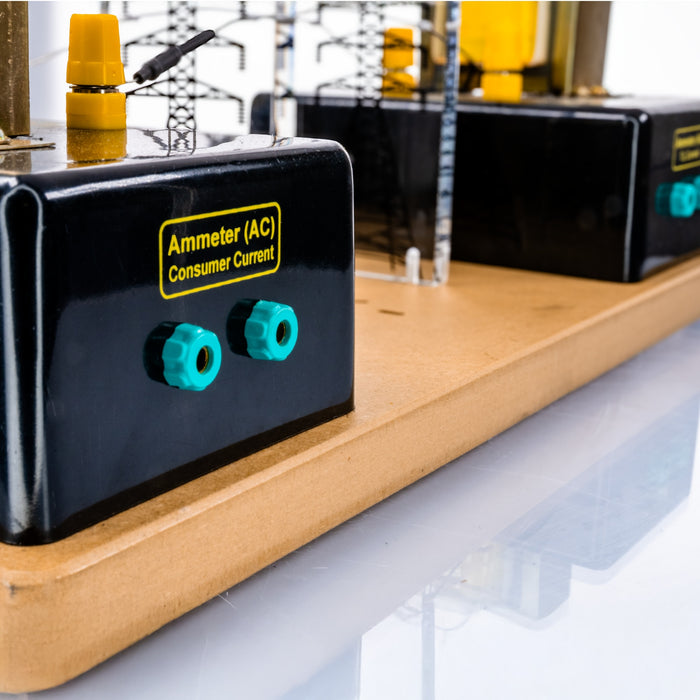

• MEASURABLE OUTPUTS || Use multimeters (not included) to measure currents and voltages at the power station, across transmission lines, and at the consumer load for quantitative analysis of energy loss.
• SAFE & COMPACT || Provides a safe, low-voltage demonstration suitable for classroom instruction, clearly illustrating complex power grid concepts without hazard.
• IDEAL EDUCATIONAL TOOL || Enhances understanding of electrical engineering principles, energy conservation, and efficiency within power distribution systems. Please note a 16VAC 500mA AC/AC external wall adapter is required but not included.

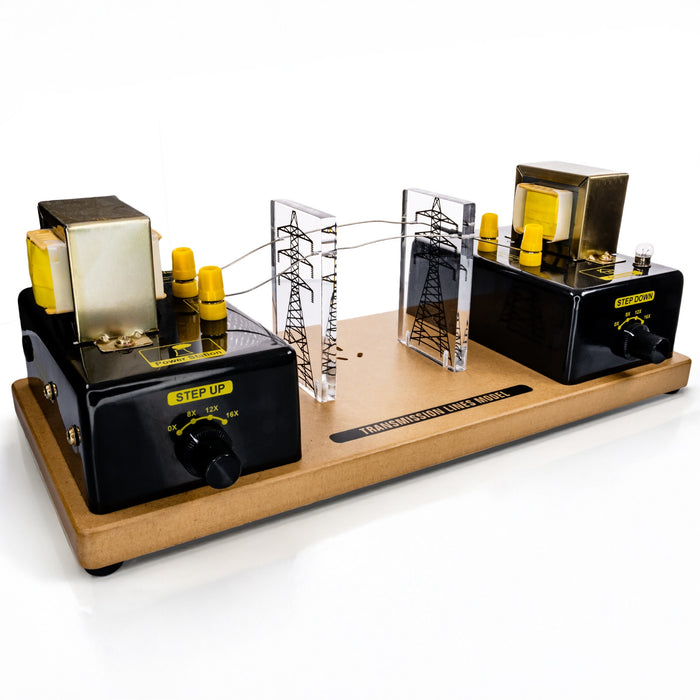

The Eisco Power Transmission Line Apparatus is a comprehensive educational tool designed to simulate an electrical power grid. This model visually and quantitatively demonstrates why electricity generated at power stations is stepped up to high voltages for transmission and then stepped down for safe household use. Equipped with built-in step-up and step-down transformers, the device showcases the significant difference in energy loss over simulated long-distance transmission lines.

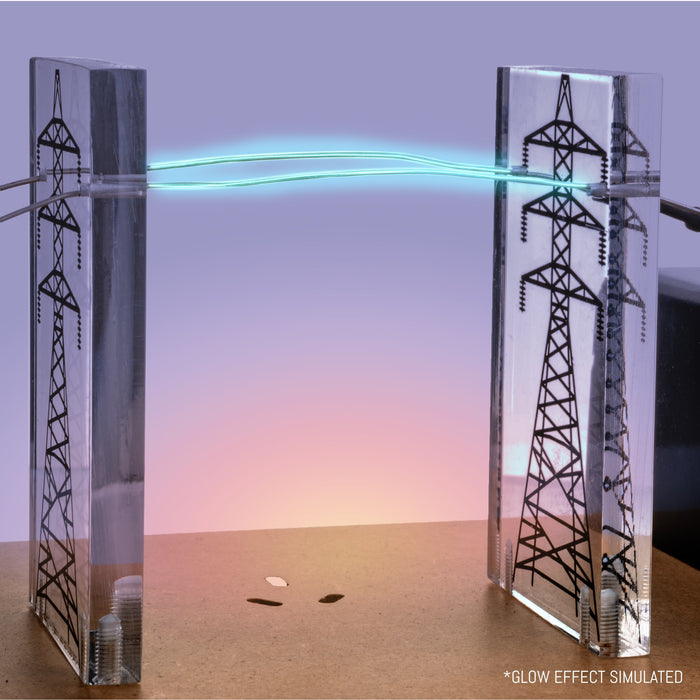

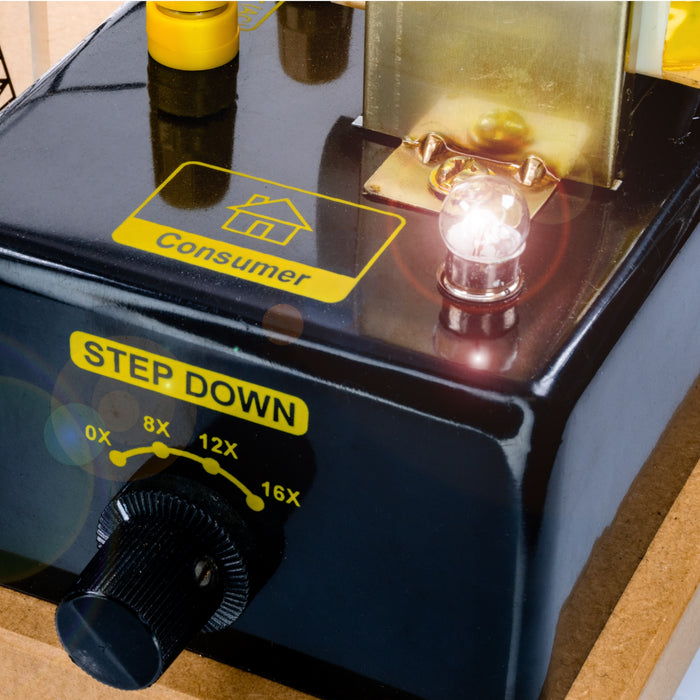

The apparatus includes a simulated power station (3 volts), step-up transformer (to ~24 volts), transmission lines (copper wires with added resistance), and a step-down transformer connected to a consumer load (2.5-volt bulb). With two clearly labeled switches, instructors can quickly alternate between scenarios with and without voltage transformation, making power loss comparisons intuitive and easily measurable.

Note: While usable as-is, the demonstration achieves its fullest educational potential when used in conjunction with two digital multimeters as AC ammeters and two as AC voltmeters (not included).Please note a 16VAC 500mA AC/AC external wall adapter is required but not included.
