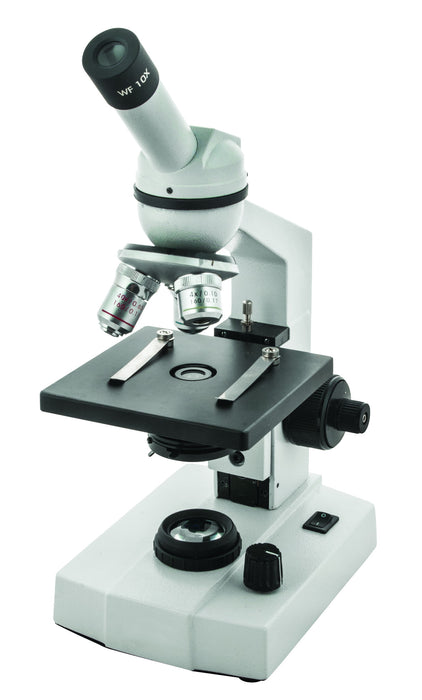

Microscope Inclined Model MB-6
SKU BI0010C
Versatile type, high performance model designed to meet the demanding requirement of higher education. The wide field eye pieces gives a nice and sharp image. Packed in Styrofoam case.
Specifications:
Mechanical Tube Length 160 mm
45° Inclined Head 360° Rotatable
Eyepieces: WF 10X
Achromatic Objectives: 4X, 10X, 40X (S), 10X, 40X(S), 100X(S) (Oil)
Coaxial coarse and fine focus adjustment
Square Stage: Area 110 x 115 mm, Abbe 1.25 NA condenser withiris diaphragm
Illuminator: LED illumination - Uses 9V Battery
Optional: Eyepieces WF 15X with fixed pointer, Detachable Mechanical Stage
Specifications:
Mechanical Tube Length 160 mm
45° Inclined Head 360° Rotatable
Eyepieces: WF 10X
Achromatic Objectives: 4X, 10X, 40X (S), 10X, 40X(S), 100X(S) (Oil)
Coaxial coarse and fine focus adjustment
Square Stage: Area 110 x 115 mm, Abbe 1.25 NA condenser withiris diaphragm
Illuminator: LED illumination - Uses 9V Battery
Optional: Eyepieces WF 15X with fixed pointer, Detachable Mechanical Stage
