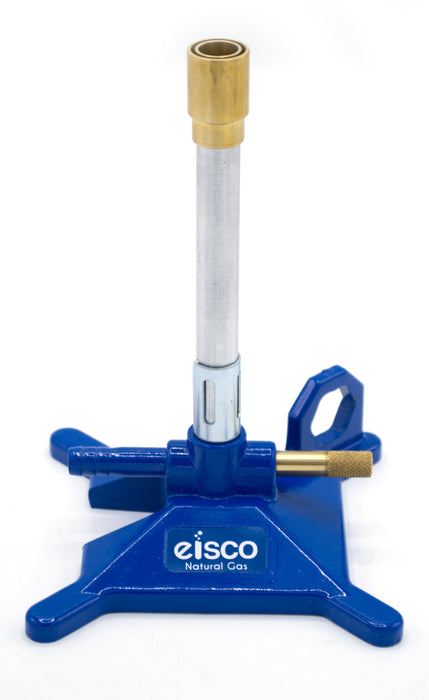

Premium Bunsen Burner, Natural Gas - StabiliBase, Anti-Tip Design

SKU CH0993NG
This premium Bunsen burner is used for safe continuous stream of flammable gas used for heating, sterilization and combustion. This burner is equipped with an air flow adjustment sleeve, brass thumb gas adjustment and brass flame stabilizer tip. Jetted for natural gas. Natural Gas Burners have a BTU range usually 800-1200. Maximum Temperature is approximately 1500° C (2732° F).
This burner is equipped with casted ribbed fuel input tube with an 8mm outside diameter - Recommended neoprene tube (not included) to connect burner to fuel source is Eisco Labs Neoprene Hose - available in 2 ft or 3 ft length options (CH0100A or CH0100B). Each end of the tubes has a flexible end that can fit a variable diameter of 0.28" to 0.42" (8-10mm) to accept a variety sizes on different burners.

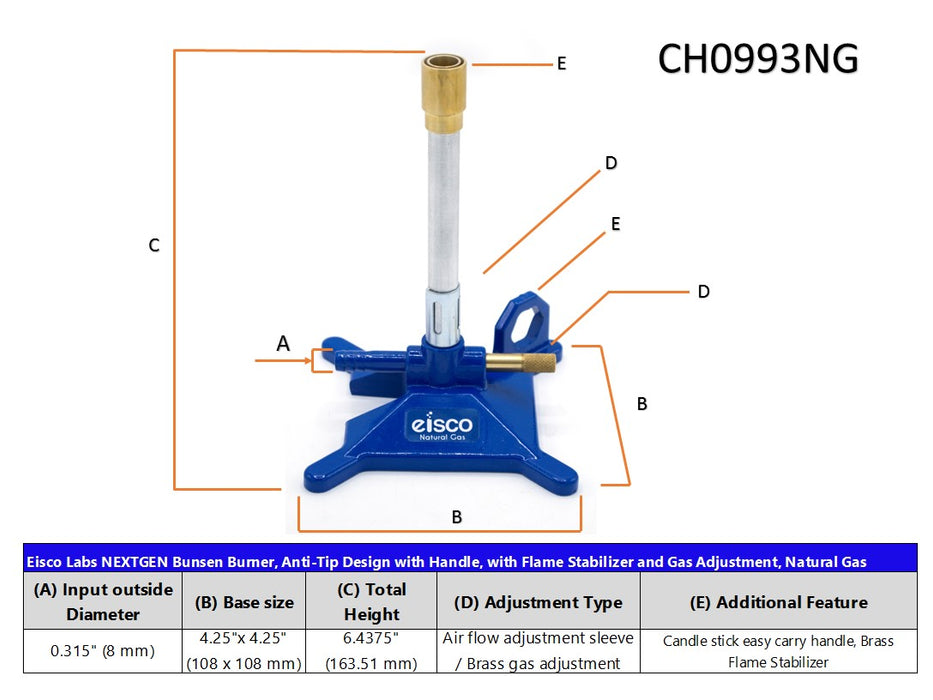

Burner measures 6.75" tall, and base measures 4.25" wide and long.

⚠ WARNING
Cancer and Reproductive Harm - www.p65warnings.ca.gov

Fuel SourceNatural Gas
MaterialCast Iron
Height6
Weight0.6
InstructionsNo instructions available online. Please contact us for further assistance.
High Resolution ImagePlease register as a teacher or distributor to view and download high resolution images.
