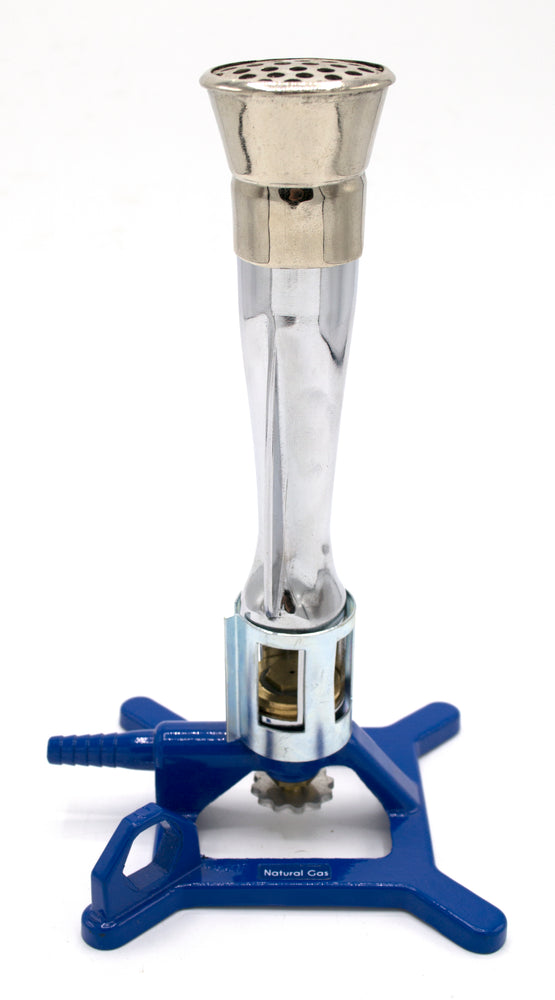

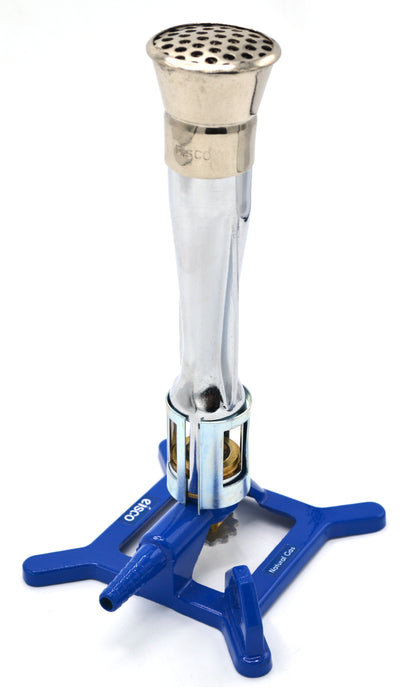

Natural Gas Meker Bunsen Burner, StabiliBase Anti-Tip Design with Handle, NG - Very High Temperature (1780°C) BTU Range - 935 to 1180 - Eisco Labs

SKU CH0996NG
  • The meker Bunsen burner is used for safe continuous stream of flammable gas used for heating, sterilization and combustion and specialize for finely controlled air / gas mixture. This burner is equipped with a gas adjustment under the burner along with air flow adjustment. This burner produces hotter flames than a traditional burner. Easy to use burner that jetted for natural gas.

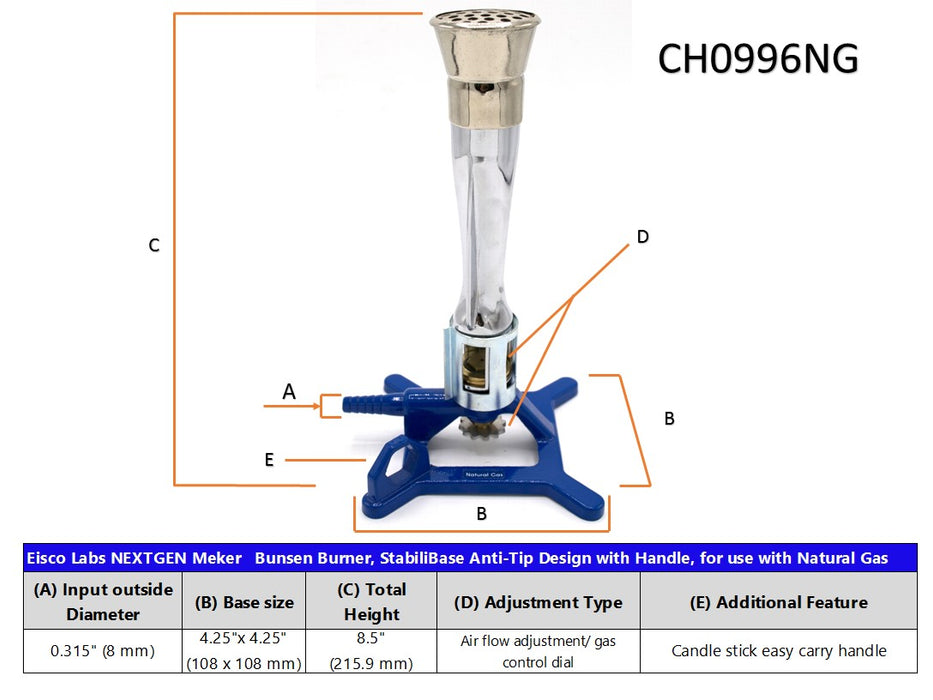

  • This burner is equipped with casted ribbed fuel input tube which is 8mm outside diameter - Recommended neoprene tube (not included) to connect burner to fuel source is Eisco Item number CH0100A 23.60" long (60cm length) or CH0100B 35.43" long (90cm length) each end of the tubes has a flexible end that can fit a variable diameter of 0.28" to 0.42" to accept a variety sizes on different burners.
  • This improved design has an extended cast Iron base (4.25" x 4.25") prevents easy tipping, even with hoses connected. Burner feet are spaced on all four corners to create extra stability and so burner fits comfortably under stands. Equipped with a sturdy "Candle stick holder" handle. This improved safety feature is casted in to the base to allow user to move burner without getting harmed.
  • Natural Gas Meker burners have a BTU range usually 600 -1100. Maximum Temperature is approximately 1780° C (3236° F)
  • All burners are available for both liquid propane and natural gas.

The Meker Bunsen burner is used for safe continuous stream of flammable gas used for heating, sterilization and combustion and specialize for finely controlled air / gas mixture. This burner is equipped with a gas adjustment under the burner along with air flow adjustment. This burner produces hotter flames than a traditional burner. Easy to use burner that jetted for natural gas. Natural Gas Meker burners have a BTU range usually 600 - 1100. Maximum Temperature is approximately 1780° C (3236° F) There are a number of burners offered with different options. Basic Burner (CH0991NG & CH0991LP) Very basic easy to use burner, usually selected based on price. Academic Burner (CH0992NG & CH0992LP) Burner with Flame stabilizer; Most common basic academic burner with air flow control. Versatile Burner (CH0993NG & CH0993LP) Burner with Flame Stabilizer and gas adjustment. Bestselling and most used burner due to flexibility to control and gas and air flow to the flame. Micro Burner (CH0994NG & CH0994LP) compact space restrictions when space and height is a concern. Tirrill Burner (CH0995NG & CH0995LP) burners for specialized finely controlled air gas mixture. Meker Burner (CH0996NG & CH0996LP) for hotter flames. All burners are available for both liquid propane and natural gas.


⚠ WARNING
Cancer and Reproductive Harm - www.p65warnings.ca.gov

Fuel SourceNatural Gas
Weight1
InstructionsNo instructions available online. Please contact us for further assistance.
