Electronics System 2 Physics Kit

SKU EIRQ06

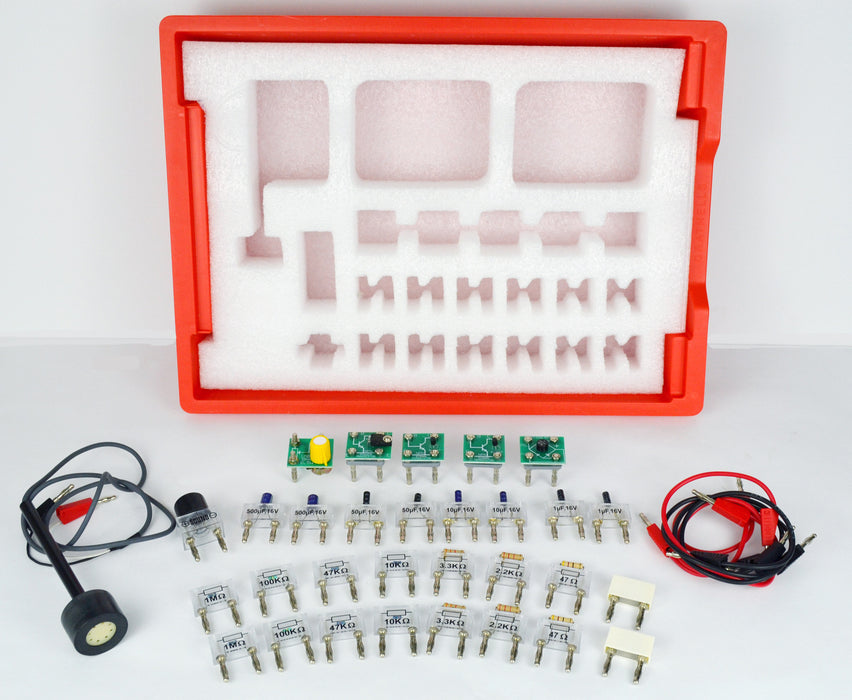

The Electronics System 2 Physics Kit is a supplemental kit to Electronics Systems 1 and comes with 35 components, including all the capacitors, resistors and transistors one needs to investigate core concepts in introductory semiconductor electronics.

With this kit students can explore common experiments such as The Astable Multivibrator, The Full-Wave Rectifier, The Push-Pull Amplifier, as well as building a basic Two Stage Audio Amplifier.

Includes an Experiment Guide detailing 5 activities. (Note: Electronics Systems 1 Physics Kit is required to perform all activities):
  • The Astable Multivibrator
  • The Full-Wave Rectifier
  • The Full-Wave Rectifier with a Capacitor
  • The Push-Pull Amplifier
  • The Two Stage Audio Amplifer
