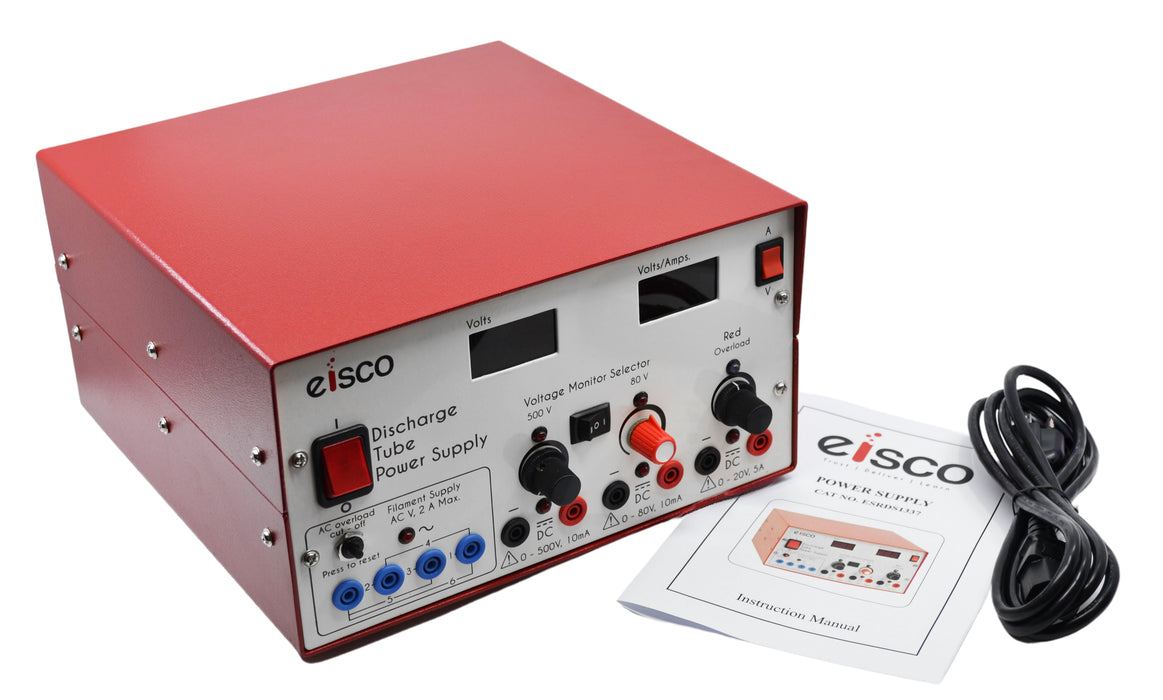

Power Supplies Discharge Tube Digital Model

SKU ESRDS1337

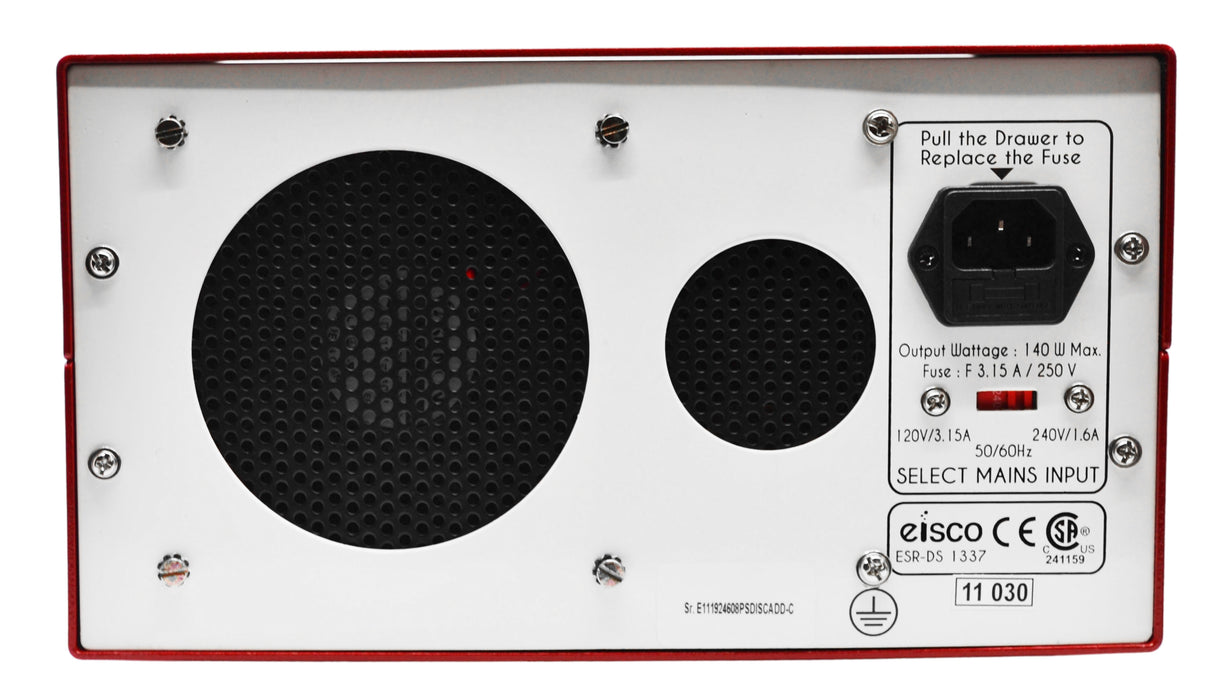

Three independent DC output voltages and one selectable AC output with this exceptional power supply. Includes overload protection indicator, glass fuses at the the input level. CSA approved & CE marked.

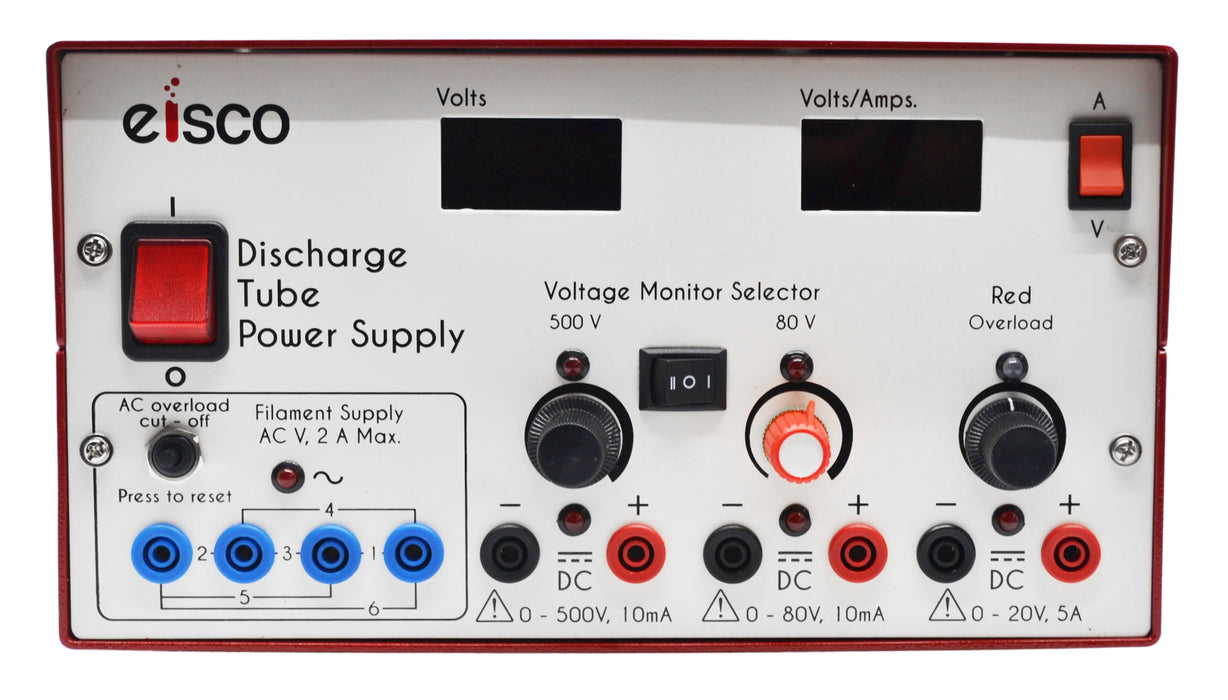

This Discharge Tube Power Supply is a very useful and unique instrument which provides the High Voltage (0 to 500V, 10mA & 0 to 80V, 10mA) & Low Voltage (0 to 20V DC, 5 Amps.) along with the DIGITAL DISPLAY for Voltage & Current. It also provides the AC Voltage selectable from 1 to 6V AC, 2 Amps. All the outputs provided are independent of each other and can be used simultaneously. The DC voltage 0 to 500V (adjustable) & 0 to 80V (adjustable) are displayed on the DIGITAL DISPLAY by selecting with the help of Voltage Monitor Selector Switch. The Low Voltage 0 to 20V, 5 Amps. DC output voltage is displayed on the DIGITAL DISPLAY. The Voltage or Current Display is selected with the help of A/V selector switch. The 6V AC, 2 Amp. is also provided on four different sockets, The A/C Voltage can be selected from 1 to 6V in the step of 1V, out of these four sockets. 2 Amp. AC Overload Cut-off resettable switch is provided in series with the AC O/P for the overload protection. Once the AC Current exceeds the 2 Amps. the switch will be cut off & O/P will be reduced to zero. This switch has to be reset to reactivate the AC output voltage. Operates on 110/120V AC, 60Hz and 220/240V AC, 50/60 Hz using voltage selector switch.
