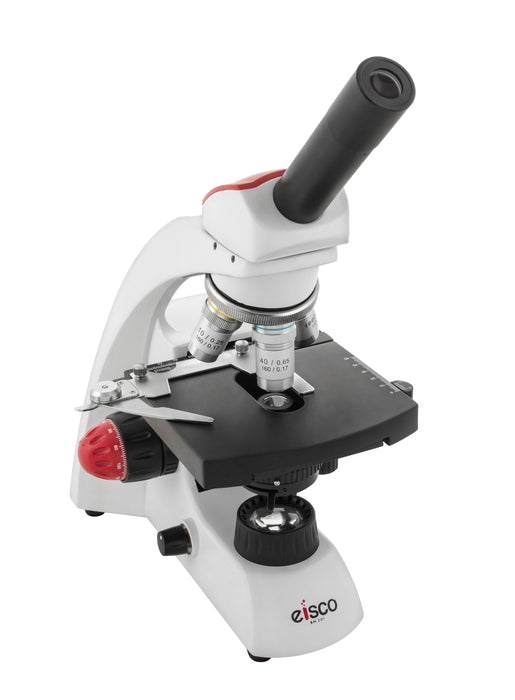

Microscope Advanced - Monocular

SKU BM101

EISCO offers a premium range of educational microscopes. The contruction quality of Redline series is superior and comparable to once high end microscopes but at an affordable cost.

                                          General Specifications

Eyepiece  WF 10x wide field eyepiece. Monocular models have an eyepiece with built-in pointer.   Binocular models come with a dioptrical adjustment for one eyepiece holder. Observation tube Monocular or Binocular Siedentopf type head, 360º rotatable. Tube length 160 mm Nosepiece Reversed nosepiece for 4 objectives. Ball-bearing mechanism and click-stops. Objectives Achromatic color coded DIN objectives. 40x and 100x oil objectives are spring-mounted. Protection Built-in protection for specimen and objective. Stages  120x120mm plain stage or 130x130mm stage with double layered mechanical X-Y stage are available.   Translation range of the mechanical X-Y stage is 70x28 mm. Focus control Coaxial coarse and fine adjustment knobs on both sides with 0.002 mm graduations. Friction of focus   control is adjustable. Condenser Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Illumination LED 1 watt illumination with internal power supply (85-230V) Packaging Complete with spare fuse and dustcover in styrofoam case.

We don't have that information available online. If you'd like to know, please email us at customer.support@eiscolabs.com and we'll get you that information ASAP.
InstructionsNo instructions available online. Please contact us for further assistance.
High Resolution ImagePlease register as a teacher or distributor to view and download high resolution images.
