Venturi Tube

SKU PH0137

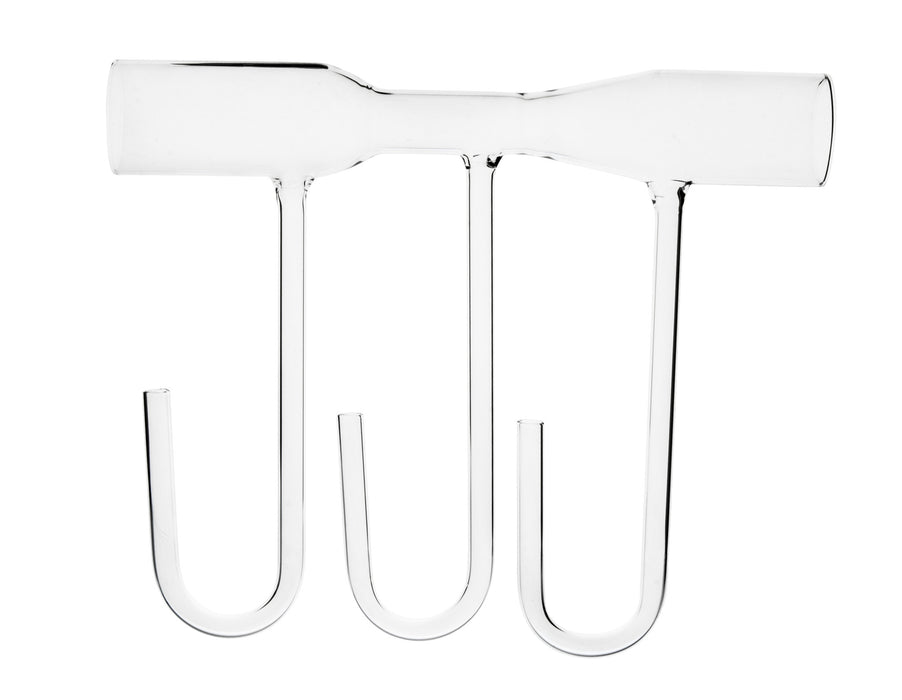

Used to measure flow of liquid, consisting of a tube with a short, narrow center section and widened, tapered ends. Length 190mm

To investigate pressure modification of an air stream within pipe constriction, to verify the dependence between static pressure and flow velocity and to investigate the velocity of flow streams in pipes. Length of pipe 190 mm interior diameter 28 mm or 13 mm respectively.
