‘g’ by Free Fall Apparatus

‘g’ by Free Fall Apparatus

  • SKU: PH0354A
  • UPC: 849230039967

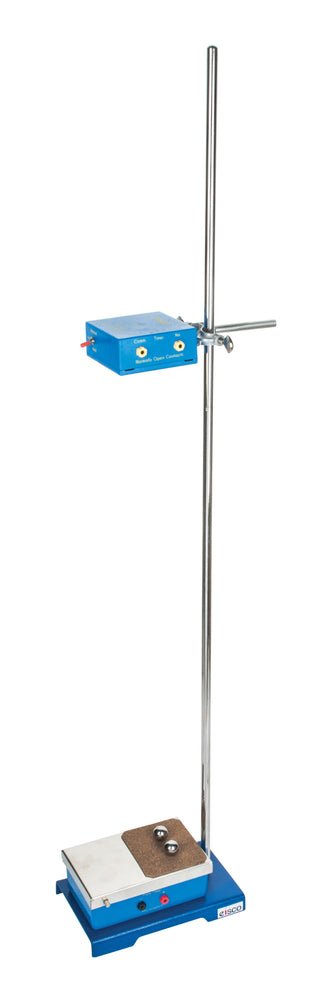

Consists of an electromagnet housed in a plastic molded case with connections for an external timer, with a heavy steel sphere, and a platform unit.

For determination of 'g' (the gravitational acceleration) by free fall method. The apparatus consists of an electromagnet which is housed in a plastic molded case with 4 mm socket connections provided to energize the magnet and another pair of sockets for connection to a timer in use.  To perform the experiment, an electromagnet is energized and a metal sphere is attached. As soon as the power to the electromagnet is switched off the sphere falls and the unit activates the timer. When the sphere hits the platform, which is connected to a micro switch, the timer stops and the time of fall can be determined.

For use with compatible timer (product code LBTM).  Unit conveniently attaches to all commonly used stands (stand not supplied, see Stand & Rod Assembly - Value Pack STD-RD).
We don't have that information available online. If you'd like to know, please email us at customer.support@eiscolabs.com and we'll get you that information ASAP.
InstructionsPlease register as a teacher or distributor to view and download instructions.
High Resolution ImagePlease register as a teacher or distributor to view and download high resolution images.
