Bar Breaking Apparatus - Ideal for Experiments in Thermal Expansion and Contraction of Metals - Eisco Labs

SKU PH0380A
  • Bar breaking apparatus designed to demonstrate thermal expansion and contraction of metals

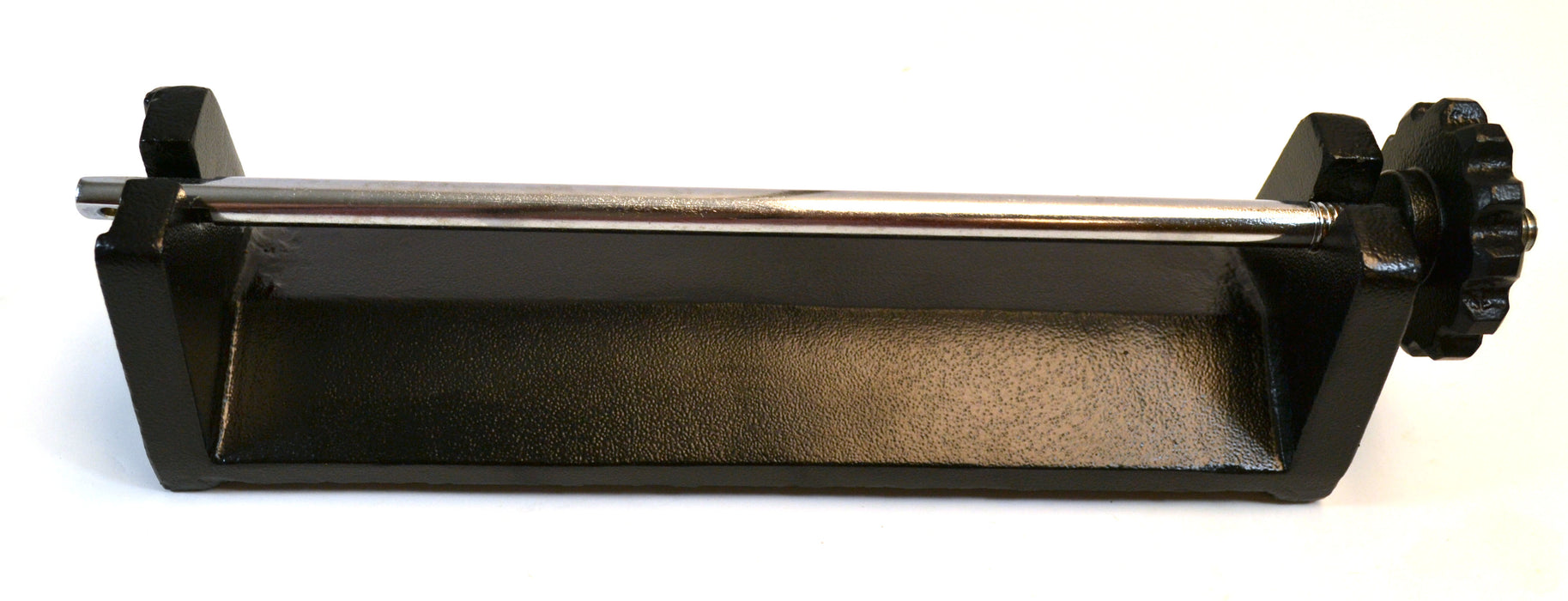

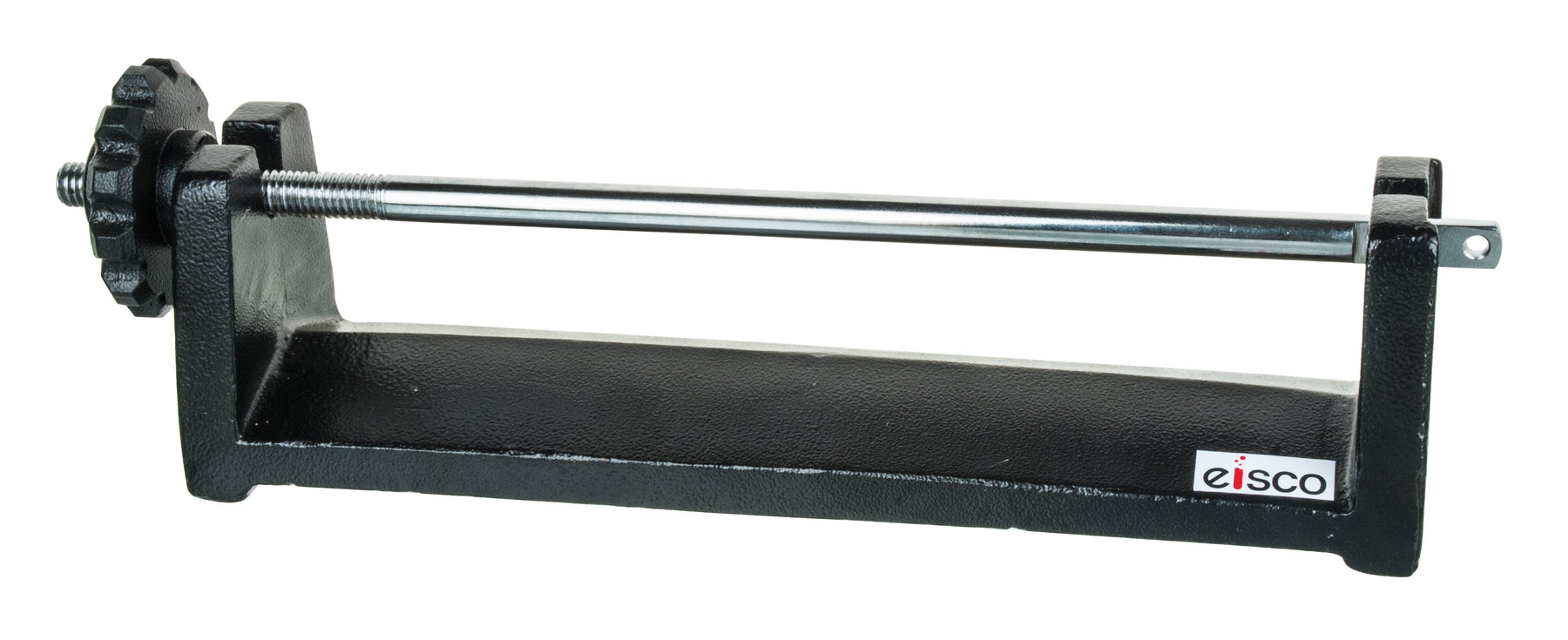

  • Features a long steel rod, mounted in a heavy iron frame
  • One end of the rod is drilled to hold a thin brittle iron rod

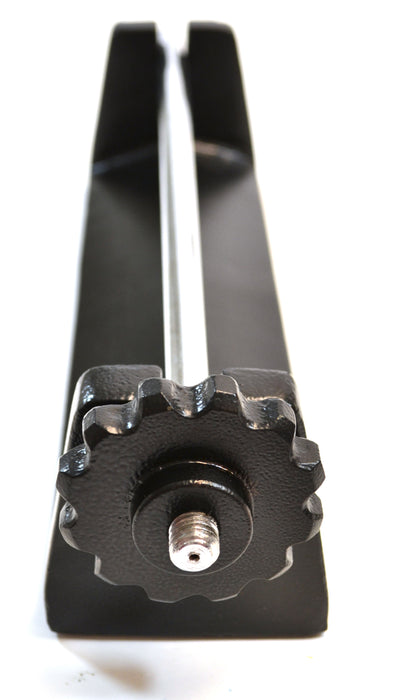

  • Opposite end of the rod is threaded and provided with a knurled tensioning knob
  • Great for physics classrooms

this apparatus is designed to demonstrate thermal expansion and contraction of metals and the forces involved in these processes. The apparatus features a long steel rod that is mounted in a heavy iron frame. One end of the rod is drilled to hold a thin brittle iron rod. The other end is threaded and provided with a knurled tensioning knob. When heated with the use of a Bunsen burner, the steel rod will expand and it's tension will decrease. Initial tension is restored by using the knurled knob. As the rod cools, the tension increased until the force on the smaller iron rod causes it to fracture, demonstrating the forces involved in thermal contraction.

Heating source and Bunsen burner not included.

Bar measures 13" long. The base of the apparatus measures 12.75" long and 3.25" wide.

Height4
Length15
Weight9.9
Width4
We don't have that information available online. If you'd like to know, please email us at customer.support@eiscolabs.com and we'll get you that information ASAP.
InstructionsNo instructions available online. Please contact us for further assistance.
