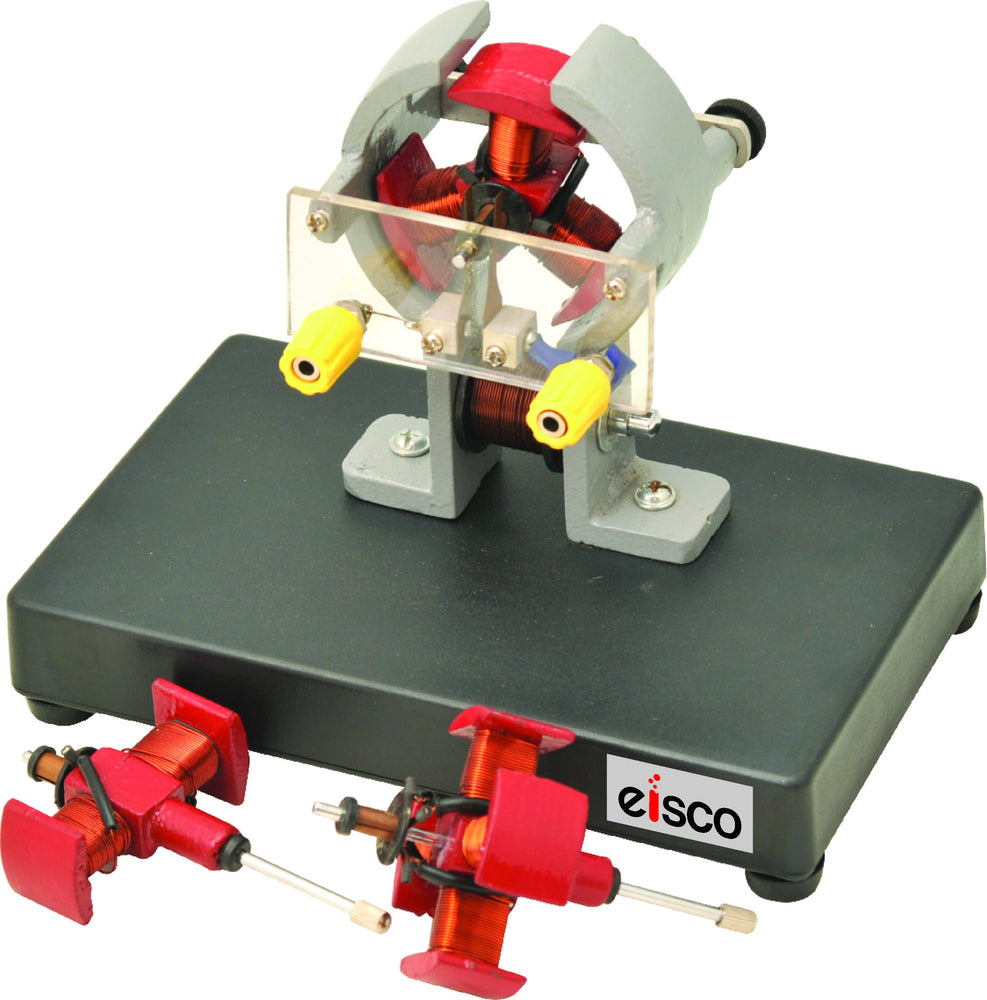

Electric Motor Demostration 2 pole, 3 pole, 4 pole Aramtures.

SKU PH1237
  • A model of the simplest form of DC electric motor.
  • Three armature, 2 pole, 3 pole and 4 pole,
  • Wound with enameled copper wire and a permanent magnetic field provided by a removable bar magnet.
  • A disc-type commutator is incorporated and external connection to the phosphor-bronze bushes is by means of a pair of 4 mm sockets.
  • Operates on 4.5 - 9 Volts DC.

A model of the simplest form of DC electric motor, having three armature, 2 pole, 3 pole and 4 pole, wound with enameled copper wire and a permanent magnetic field provided by a removable bar magnet. The construction of the model is completely open and all parts clearly visible. A disc-type commutator is incorporated and external connection to the phosphor-bronze bushes is by means of a pair of 4 mm sockets. Operates on 4.5 - 9 Volts DC.
