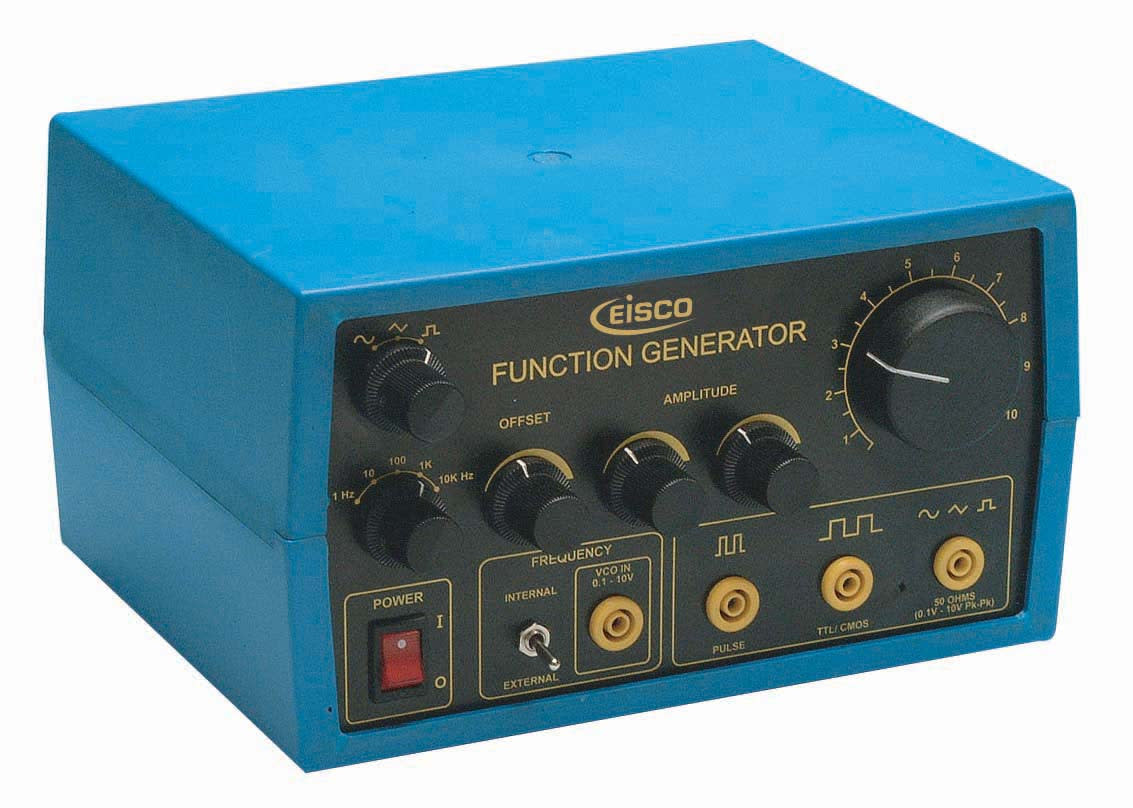

EISCO Advanced Function Generator - 1Hz to 100kHz

SKU PH1296A
Includes: (1) Generator

This new EISCO Function Generator has many versatile functions.
Wave Shape Output : Sine, Square, Triangular, Pulse & TTL/CMOS Compatible Square Wave Output
Freq. Output : 1 Hz - 100KHz (adjustable) in five steps 1Hz, 10Hz, 100Hz, 1KHz, 10KHz with multiplier x 10
Coarse & Fine Amplitude control settings are provided at the front panel.
- PULSE, TTL/CMOS Sine/Square/Triangular all the three outputs are available at a time on the front panel & can be used simultaneously.
- PULSE & TTL/CMOS output, amplitude in the fixed compatible to TTL/CMOS series
- VCO (Voltage Controlled Oscillator) : In this mode the o/p frequency available is corresponding to the DC Voltage applied at the VCO IN (0.1V to 10V) socket & putting the toggle switch in external mode.
- Input Voltage 120V, 60Hz & 240V, 50Hz/60Hz (Selectable)
- Dimensions 215 x 180 x 130 mm (W x D x H)
- Weight 1.5 Kg approx.
