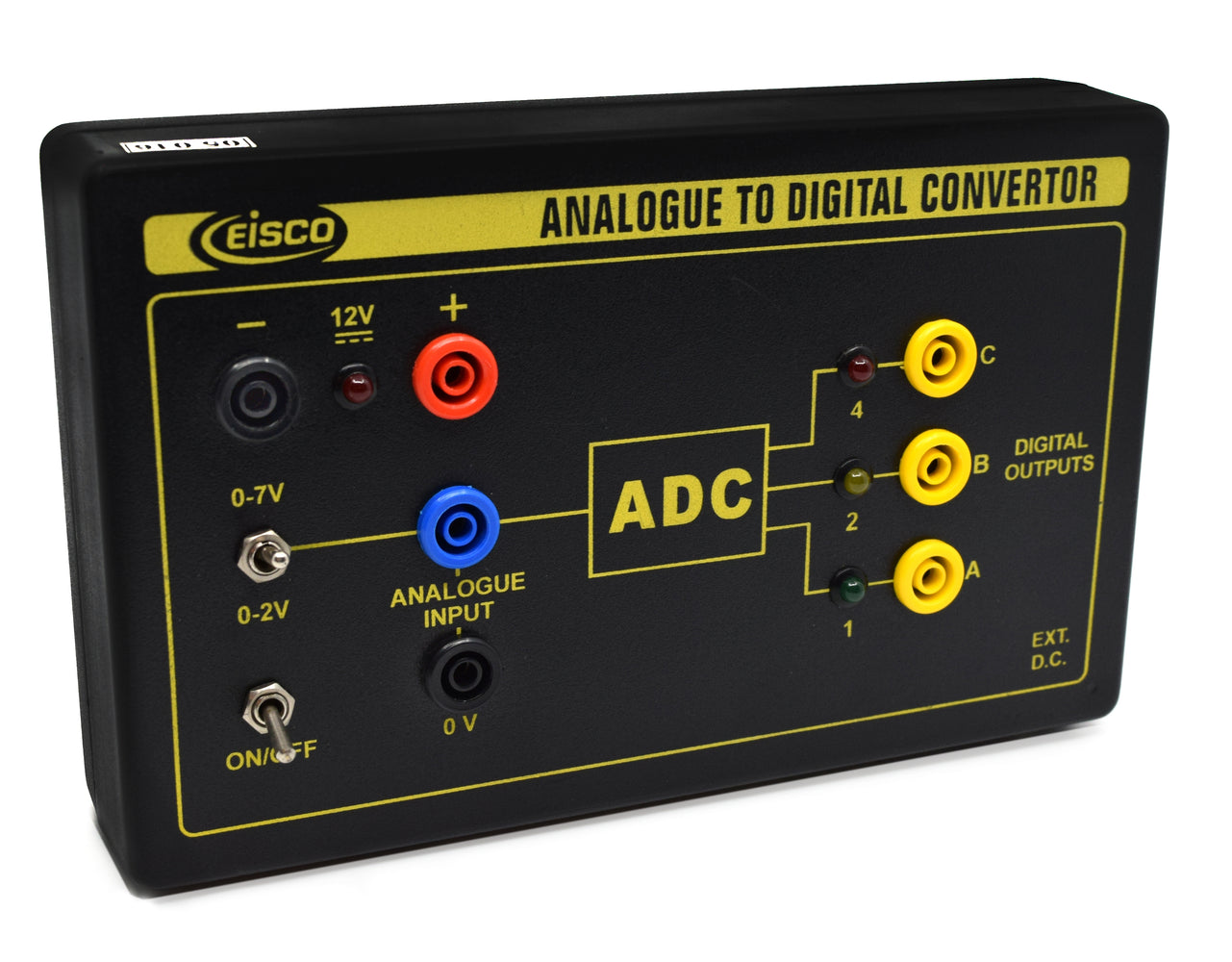

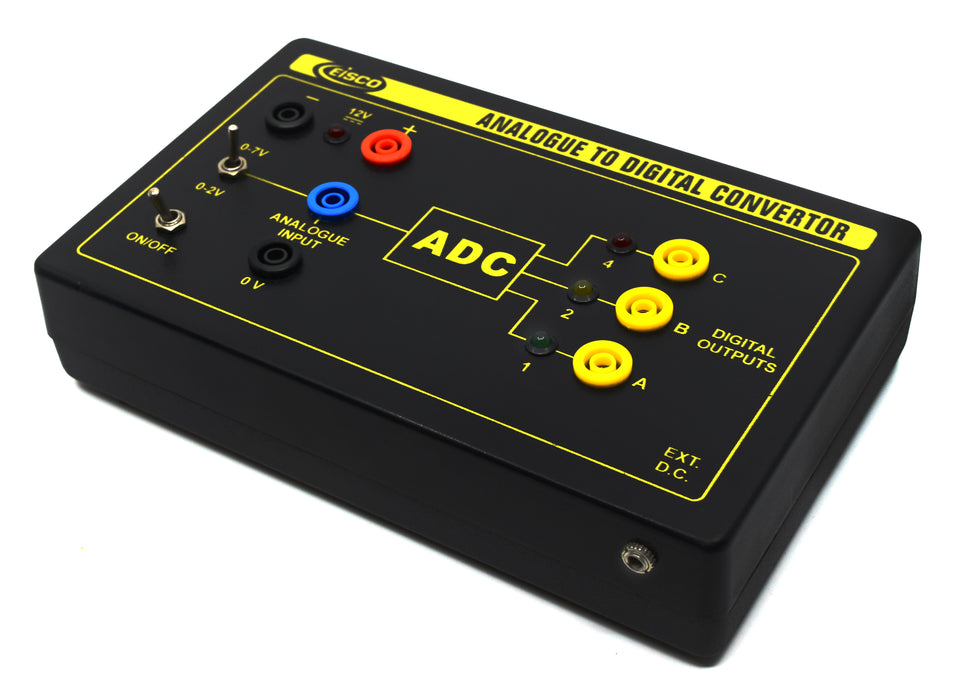

Analog to Digital Convertor - Great for Demonstrating the basis of Digital Communications - Eisco Labs

SKU PH1366
  • Converts analog signal to a binary digital output
  • Great for demonstrating the basis of digital communications
  • Companion apparatus to the Eisco Labs Digital to Analog Converter (PH1367)
  • Unit measures 8" wide, 4.75" long and 1" tall
  • Perfect for any classroom and useful for a variety of experiments

An excellent system for demonstrating the basis of digital communications. An analogue input in the range 0 to 7V is converted to a binary digital output in 1V steps (i.e. 1V is represented by 001, 2V by 010, etc.) A switch converts the unit to 0 to 2V sensitivity so that low frequency sine waves from a signal generator can be digitized. The binary output is available at 4mm sockets for use with the companion Eisco Labs Digital to Analog Converter (PH1367).

Unit measures 8" wide, 4.75" long and 1" tall.

Weight0.7
We don't have that information available online. If you'd like to know, please email us at customer.support@eiscolabs.com and we'll get you that information ASAP.
InstructionsNo instructions available online. Please contact us for further assistance.
